How Do Metal Bellows Support Axial Displacement in the Piping System?

The piping system is the basic foundation of multiple industries, including the chemical industry, oil & gas, water treatment plants, and power generation plants. In an industrial piping system, movement is inevitable. Pressure fluctuation, thermal expansion, and mechanical vibration can cause severe damage to the piping technology, especially in the axial direction. It can create severe damage, joint failure, and dangerous leaks which leads to an industrial disaster.

In such a critical situation, axial expansion joint manufacturers can safeguard against industrial damage by providing the best quality metal bellows. Only metal bellows can support axial displacement with its unique mechanism. Through this blog, we will discuss how metal bellows support axial displacement in the piping system.

What Do You Mean by Axial Displacement?

Axial displacement happens when a pipe expands along with its length. This situation occurs due to some circumstances; let’s discuss them in detail-

1. Thermal expansion- It happens when temperature increases. Metal pipes expand by their length
2. Mechanical forces- It happens when external loads change the pipe alignment
3. Pressure variations- Changes in internal pressure can change the pipe segments

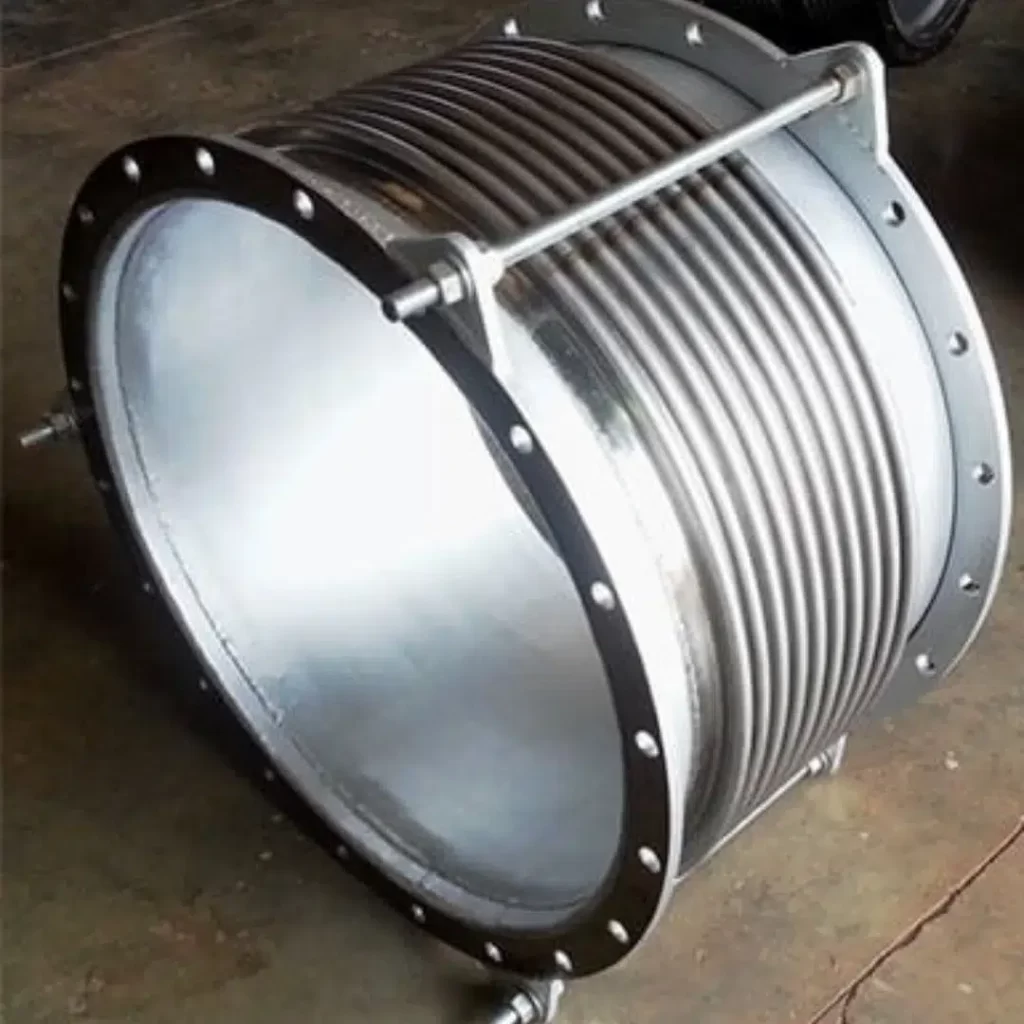

How Metal Bellows Compensate Axial Joints in the Piping System

The unique engineering of metal bellows can easily compensate the axial expansion joints in the piping system in a unique way. Let’s discuss them in detail-

1. When the pipeline expands, the metal bellows compress the excess expansion
2. When the pipeline contracts, the metal bellows extend its work
3. The flexibility of metal bellows absorbs the movement and prevents it from being transferred to rigid mechanical components of the piping system. It protects the piping system from any adverse circumstances and remains stable

Benefits of Using Metal Bellows in Industrial Piping System

In this segment, we will discuss the tremendous benefits of using metal bellows in industrial piping systems.

1. Flexibility- Metal bellows can withstand any harsh weather condition, pressure, or temperature
2. Composite design- Bellows provide high flexibility within a short length that can save space
3. Longer service life- Maximum metal bellows made from stainless steel or other alloys, which can resist to any weather and are highly durable

Industrial Applications of Metal Bellows

Metal bellows are highly effective for industrial usage due to their impressive mechanical strength and flexibility. Let’s discuss the industries where metal bellows are fundamental components in piping systems.

1. In power plants, the metal below can manage thermal expansion
2. In the petrochemical industry, metal bellows are effective in transporting high-temperature fluids
3. The aerospace industry needs metal bellows for their impressive flexibility

Conclusion

From the above information, you can understand the immense requirement for metal bellows to manage axial displacement in the piping system. But you need to choose a reputed manufacturer to buy the best quality metal bellows. In such a case, you can contact Flexpert Bellows to buy the premium quality bellows at an affordable price.
